Lowell 100LVC-RM Attenuator-100W 70V/25V Rackmount

1 Review

Ask a Question

100LVC

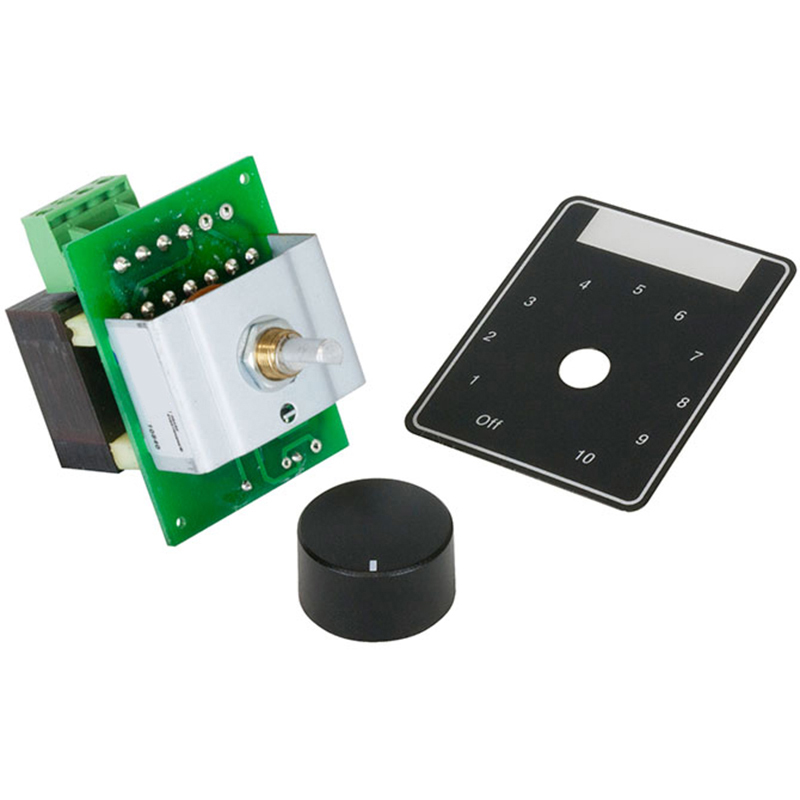

100LVC-RM: MONO Attenuator (100W)

100W volume control with rotary switch for rackmount use.

SPECIFICATIONS

• Power Rating:  100W

• Attenuation:  3dB per step (two steps of 6dB each before off)

• Use With:  25/70/100V speaker line

• Activation:  Rotary dial

• Volume Positions:  0-10

• Termination:  Phoenix-style

• Wire Capacity:  14-gauge

• Adhesive dial scale with label area

A&E SPECIFICATIONS

The volume control shall be Lowell Model No. 100LVC-RM which shall have a power rating of 100W and attenuation of 3dB per step with two steps of 6dB each before off. It shall include a rotary knob and an adhesive label with dial scale. The control shall be ETL Listed.

OPTIONS (order separately)

LVC8P-ID2:  Rackmount panel for attenuator installation (holds up to eight)

 OTHER MODELS:

100LVC Standard/Stainless

100LVC-DSW Decorator/Stainless & White

100LVC-DSB Decorator/Stainless & Black

100LVC-DB Decorator/Black

100LVC-DW Decorator/White

100LVC-DA Decorator/Almond

100LVC-RM 100W

100LVC-SA Standard/Almond

100LVC-SW Standard/White

100LVC-PA Standard/Stainless

100LVC-PA-RM 100W, Emergency bypass

100LVC-PA-DA Decorator/Almond

100LVC-PA-DB Decorator/Black

100LVC-PA-DW Decorator/White

100LVC-PA-SW Standard/White
