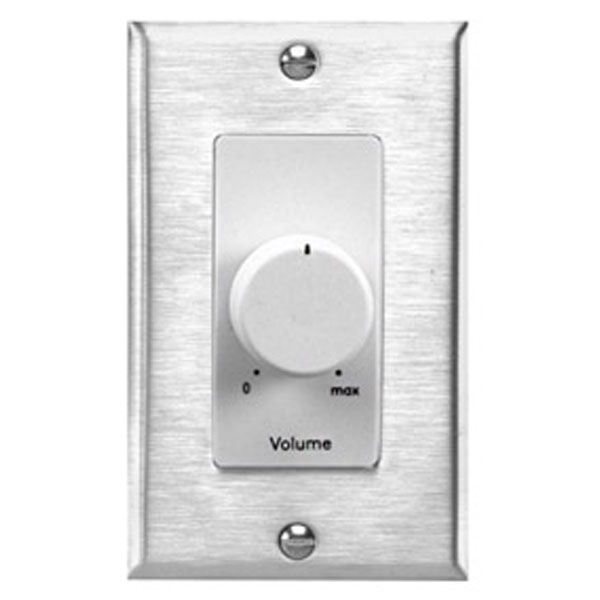

Lowell 25LVC-DA Attenuator-25W 70V/25V 1-gang Decorator Almond

Write a Review

Ask a Question

25W volume control with rotary switch and one-gang wall plate.

SPECIFICATIONS

• Power Rating: 25W

• Attenuation: 3dB per step (33dB total)

• Use With: 25/70/100V speaker line

• Activation: Rotary dial

• Volume Positions: 0-10

• Termination: Phoenix-style

• Wire Capacity: 14-gauge

• Wall Plate: 1-gang decorator style

• Finish: Almond

• Fits standard E.O. box (2.125 in. min. depth)

COMPLIANCE & CERTIFICATION

• Made in the U.S.A. with global components

• ETL Listed

The ETL Listed volume control shall be Lowell Model 25LVC-DA with 25W power rating and 3dB per step attenuation. It shall include a decorator style one-gang wall plate with almond finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included).

OPTIONS (order separately)

• P1X: Surface-mount wall box, 1-gang

OTHER MODELS:

25LVC MONO Attenuator Standard/Stainless

25LVC-DW MONO Attenuator Decorator/White

25LVC-SW MONO Attenuator Standard/White

25LVC-DA MONO Attenuator Decorator/Almond

25LVC-SA MONO Attenuator Standard/Almond

25LVC-DB MONO Attenuator Decorator/Black

25LVC-DSB MONO Decorator/Stainless & Black

25LVC-DSW MONO Decorator/Stainless & White

25LVC-RM MONO Attenuator Rack mount
