Lowell 25LVC-RM Attenuator-25W 70V/25V Rackmount

Write a Review

Ask a Question

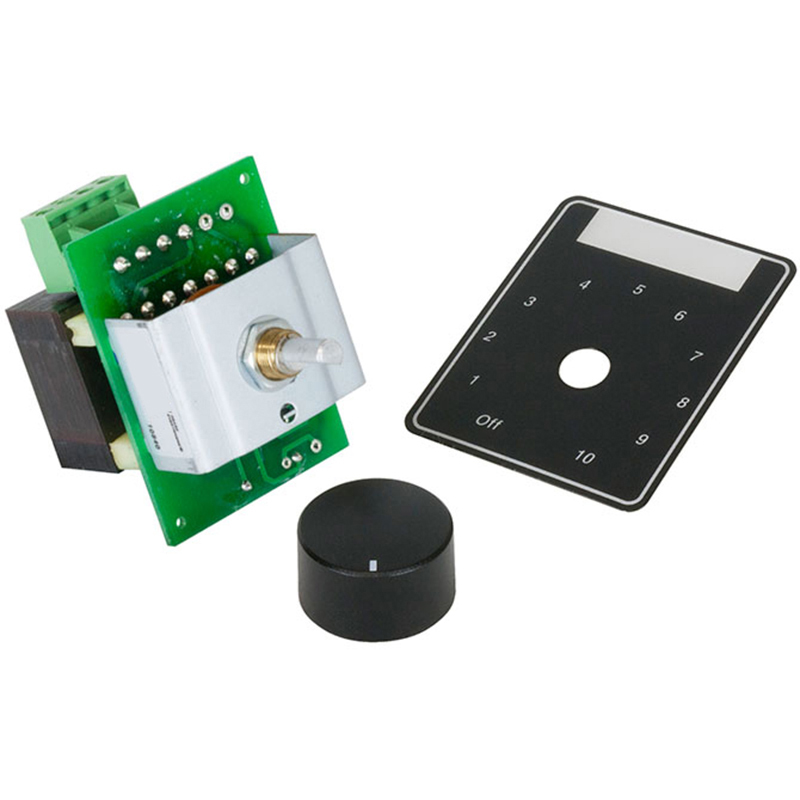

25W volume control with rotary switch for rackmount use.

SPECIFICATIONS

• Power Rating: 25W

• Attenuation: 3dB per step (two steps of 6dB each before off)

• Use With: 25/70/100V speaker line

• Activation: Rotary dial

• Volume Positions: 0-10

• Termination: Phoenix-style

• Wire Capacity: 14-gauge

• Adhesive dial scale with label area

COMPLIANCE & CERTIFICATION

• Made in the U.S.A. with global components

• ETL Listed

The volume control shall be Lowell Model No. 25LVC-RM which shall have a power rating of 25W and attenuation of 3dB per step with two steps of 6dB each before off. It shall include a rotary knob and an adhesive label with dial scale. The control shall be ETL Listed.

OPTIONS (order separately)

• P1X: Surface-mount wall box, 1-gang

OTHER MODELS:

25LVC MONO Attenuator Standard/Stainless

25LVC-DW MONO Attenuator Decorator/White

25LVC-SW MONO Attenuator Standard/White

25LVC-DA MONO Attenuator Decorator/Almond

25LVC-SA MONO Attenuator Standard/Almond

25LVC-DB MONO Attenuator Decorator/Black

25LVC-DSB MONO Decorator/Stainless & Black

25LVC-DSW MONO Decorator/Stainless & White

25LVC-RM MONO Attenuator Rack mount
