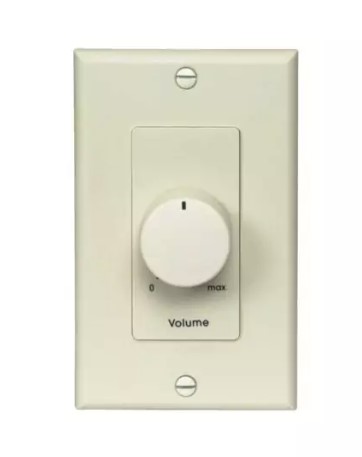

Lowell 50LVC-DA Attenuator-50W 70V/25V 1-gang Decorator Almond

Write a Review

Ask a Question

50W volume control with rotary switch and one-gang wall plate.

SPECIFICATIONS

• Power Rating: 50W

• Attenuation: 3dB per step (33dB total)

• Use With: 25/70/100V speaker line

• Activation: Rotary dial

• Volume Positions: 0-10

• Termination: Phoenix-style

• Wire Capacity: 14-gauge

• Wall Plate: 1-gang decorator style

• Finish: Almond

• Fits standard E.O. box (2.125 in. min. depth)

COMPLIANCE & CERTIFICATION

• Made in the U.S.A. with global components

• ETL Listed

The ETL Listed volume control shall be Lowell Model 50LVC-DA with 50W power rating and 3dB per step attenuation. It shall include a decorator style one-gang wall plate with Almond finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included).

OPTIONS (order separately)

• P1X: Surface-mount wall box, 1-gang

OTHER MODELS:

50LVCS: Standard/Stainless

50LVC-DW: Decorator/White

50LVCS-SW: Standard/White

50LVCS-SA: Standard/Almond

50LVCS-DA: Decorator/Almond

50LVCS-DW: Decorator/White

50LVC-SW: Standard/White

50LVC-SA: Standard/Almond

50LVC-DB: Decorator/Black

50LVC-DA: Decorator/Almond

50LVC-RM: Rack Mount

50LVCS-DSB: STEREO Decorator/SS & Black

150LVCS: STEREO Standard 2-gang/Stainless

150LVCS-DSB: STEREO Decorator/Stainless & Black

50LVCS-DB: STEREO Decorator/Black
