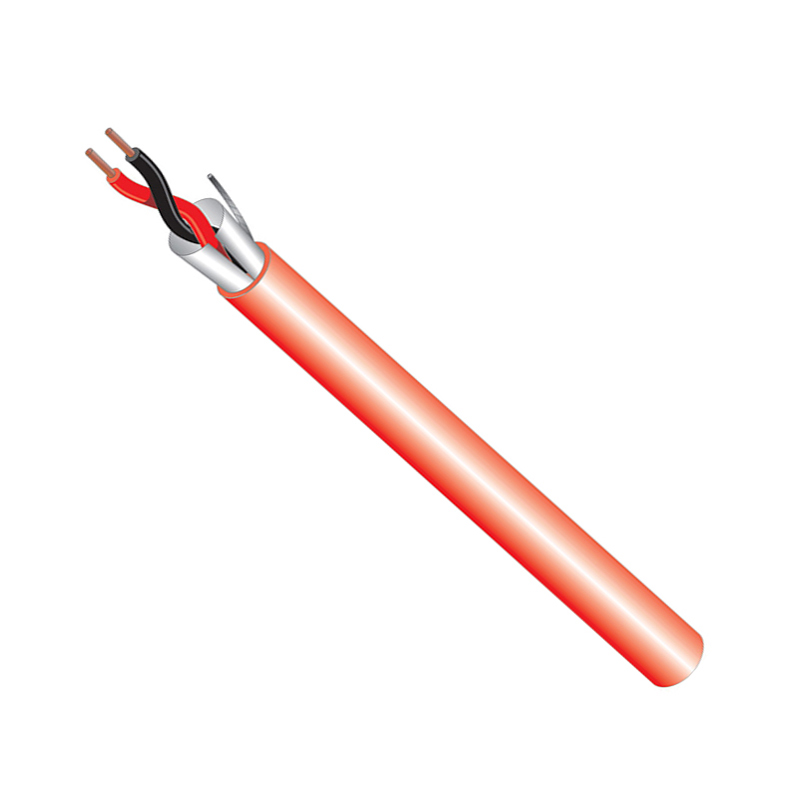

West Penn Wire 60992BSRD0500 - 2 Cond 14 (7X.0242) Bare Shielded Fplp

Write a Review

Ask a Question

CONSTRUCTION & DIMENSIONS

-

CONDUCTOR PARAMETER

-

• Number of Conductors

2

• AWG Size

14

• Conductor Stranding

Stranded

• Conductor Type

Bare Copper

• Nominal DCR

2.6 Ohm/1000ft

• Cabling Lay Length

3.25 in

• Twists/Foot

3.7 twist/ft

INSULATION PARAMETER

-

• Insulation Type

Plenum PVC

• Insulation Thickness

0.009 in

• Insulation Color Code

1. Black 2.Red

SHIELDING PARAMETER

-

• Shield Type

Overall 100% Aluminum Foil

• Drain Wire Type

Tinned Copper

• Drain Wire AWG

24 AWG

ELECTRICAL CHARACTERISTICS

-

• Nom. Cap. Between Conductors

84 pF/ft

• Nom. Cap. Conductor to Shield

151 pF/ft

OVERALL CONSTRUCTION PARAMETERS

-

Jacket Type

Flexible Plenum

Jacket Thickness

0.015 in

Nominal Cable O.D.

0.202 in

Plenum

Yes

NEC UL Rating

FPLP

RoHS Compliant

Yes

Pull Tension

113 lbs

Bend Radius

1.818 in

Cable Weight

39 lbs
