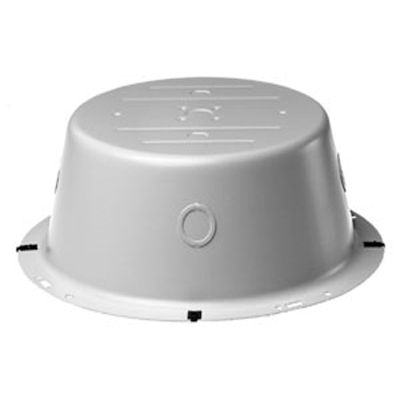

Lowell 8XD4-S Backbox-Recessed-8in Spkr Steel 10in Dia x 4in Deep

Write a Review

Ask a Question

Steel recessed enclosure for 8 in. driver, slight taper (stackable). Features one planished knockout on top to preserve leak-free integrity of enclosure in return air plenum, four side knockouts, plus two mounting straps. For new or existing construction.

SPECIFICATIONS

• Material: Steel

• Finish: White

• Diameter: 10.00 in., tapered

• Depth: 4.00 in.

• Volume: 0.147 cu.ft.

• Acoustical Treatment: Foam pad

• Mounting & Installation Aids: Knockouts (1 top planished, 4 side), clips, straps

• For Grille Type: Screw-mount

CERTIFICATION & COMPLIANCE

• Made in the U.S.A.

• Certified U.S. steel

The enclosure for recessed installation of an 8 in. driver shall be Lowell Model No. 8XD4-S, which shall be fabricated of certified U.S. steel and have a white powder epoxy finish. The unit shall have a diameter of 10 inches and a depth of 4 inches. It shall include a polyurethane foam disc that is UL Listed to meet flammability CAL-117 for resonance and vibration control. The enclosure shall also feature one planished (0.5 in.) knockout on top, four (0.5 to 0.75 in.) knockouts on sides (spaced at 90-degree intervals), and two flexible perforated mounting straps.

COMPATIBLE COMPONENTS (order separately)

• Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8

• Drivers: 8 inch (magnet weight not more than 10 oz., mounted transformer with taps not more than 8W)

• Tile Bridges: LBS8, LBS8-R1

Other Models:

8XD4: Recessed Enclosure

8XD4-P: Recessed Enclosure

8XD4-S: Recessed Enclosure
