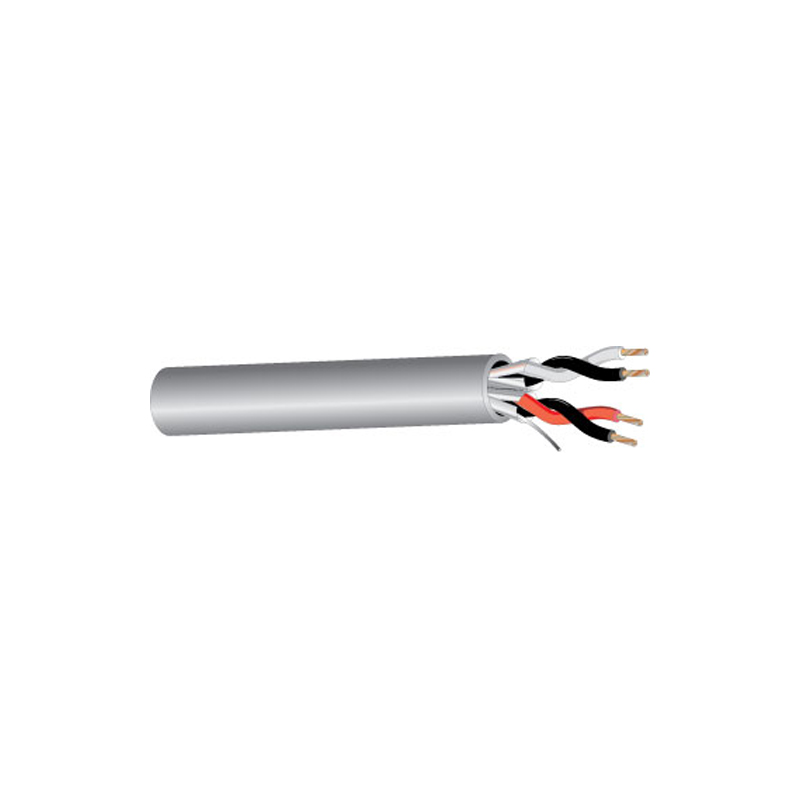

West Penn Wire D25430GY0500 - 2 Pair 22 Stnd Tinned Ind.Shielded

Write a Review

Ask a Question

CONSTRUCTION & DIMENSIONS

-

CONDUCTOR PARAMETER

-

• Number of Pairs

2

• AWG Size

22

• Conductor Stranding

7x30

• Conductor Type

Tinned Copper

• Nominal DCR

17 Ohm/1000ft

INSULATION PARAMETER

-

• Insulation Type

FEP

• Insulation Thickness

0.007 in

• Insulation Color Code

1. Black 2.Red

SHIELDING PARAMETER

-

• Shield Type

Individually Shielded

• Drain Wire Type

Tinned Copper

• Drain Wire AWG

24 AWG

ELECTRICAL CHARACTERISTICS

-

• Nominal Impedance

55 Ohm

• Nom. Cap. Between Conductors

35 pF/ft

• Nom. Cap. Conductor to Shield

67 pF/ft

OVERALL CONSTRUCTION PARAMETERS

-

Total Number of Conductors

4

Jacket Type

Flexible Plenum

Jacket Thickness

0.017 in

Nominal Cable O.D.

0.218 in

Plenum

Yes

NEC UL Rating

CMP

RoHS Compliant

Yes

Pull Tension

55 lbs

Bend Radius

1.962 in

Cable Weight

27 lbs
