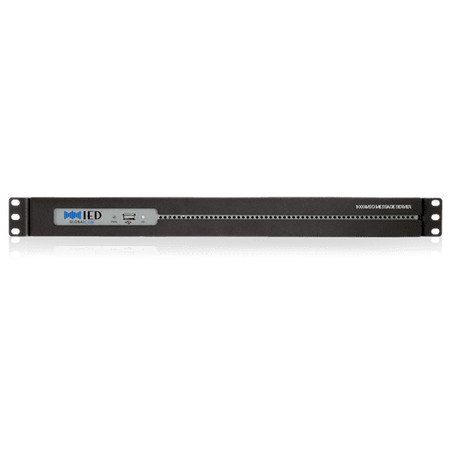

Atlas Sound IED1000MSG - GLOBALCOM Message Server Control Software

Write a Review

Ask a Question

IED1000MSG

DESCRIPTION:

The 1000MSG is a 16-channel (8 records and 8 playbacks) messaging devices for use in GLOBALCOM® systems. They may be used as the primary messaging device in systems utilizing the 1000vACS software package installed on the system server, or it may be used as a second, third or fourth messaging device on 1000vACS or 1200ACS systems. Optionally, multi-lingual Text-to-Speech (TTS) capabilities may be incorporated. Additionally, the IED1000MSG can interface with external systems. It includes eight (8) logic inputs and eight (8) relay outputs to interface with external systems.

FEATURES:

• Low-power processor for high reliability and long life with minimal cooling requirements
• Storage is on solid state drive for higher performance and reliability than rotating media drives
• Powered from the included IED1112PSD 12VDC power supply module or the IED1112PS rack mount redundant power supply unit
• Fits into one (1) RU of 19” rack space
• Annual End Point License Required
• Requires IED1108SND or IED1116SND CobraNet® Sound Card for Operation
• Capable of Eight (8) Playback and Eight (8) recording Operations Simultaneously
• Channel Capacity can be Expanded with Additional Message Server Units in a System
• Stores Up to 250 Hours of Pre-Recorded .wav Message Files
• Includes Eight (8) Opto Isolated Logic Inputs and Eight (8) relay Outputs to Interface with External Systems
• Interfaces Directly to GLOBALCOM® Announcement Controllers
• Stores/Manages Pre-Recorded Messages in Multiple Languages
• Delayed Messages are Limited Only By Available Disk Space
• Basic Configuration is Completed Using Built-In Web Interface
• Advanced Configuration is Performed Using the IED Enterprise Suite of Tools

Datasheet, installation sheet, and other information available Upon Request.
