Bud Industries PN-1322-DGMB, L5 X W3 X D2, Plastic NEMA 4X Box With Mounting Brackets

Write a Review

Ask a Question

PN-1322

PN-1322 Style 1

PN-1322-C Style 2 Clear

PN-1322-DG Style 3 Dark Grey

Optional Internal Panel:

Part Number PNX-91421

Style 1 - Light gray polycarbonate body and cover. Body/Cover - UV stabilized , UL94-HB flammability rating, suggested service temperature -40C to 120C.

Style 2 - Light gray polycarbonate body and clear polycarbonate cover. Body/Cover - UV stabilized UL94-HB flammability rating suggested service temperature -40C to 120C.

Style 3 - (For indoor use only) Dark gray ABS body and cover. Body/Cover - UL94-HB flammability rating, suggested service temperature -20C to 80C.

All styles feature specialized captive screws that are screwed into the cover and stay in it when the cover is removed

Mounting bracket style

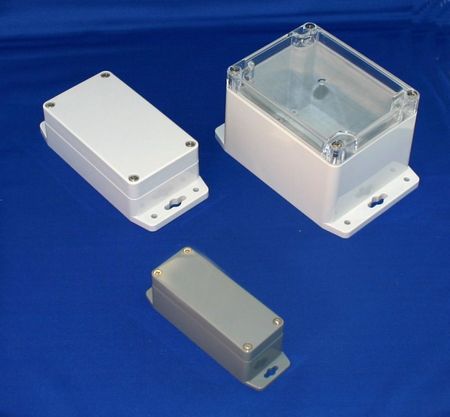

These Polycarbonate and high-impact ABS molded enclosures meet NEMA 1, 2, 4, 4x, 12, and 13 specifications and are ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries. They come with molded external mounting brackets. Available in a variety of sizes, these NEMA boxes are offered in three different versions.

Style 1 - Light gray polycarbonate body and cover. Body/Cover - UV stabilized , UL94-HB flammability rating, suggested service temperature -40C to 120C.

Style 2 - Light gray polycarbonate body and clear polycarbonate cover. Body/Cover - UV stabilized UL94-HB flammability rating suggested service temperature -40C to 120C.

Style 3 - (For indoor use only) Dark gray ABS body and cover. Body/Cover - UL94-HB flammability rating, suggested service temperature 0C to 80C.

PN-1322-MB Style 1 Polycarbonate / Light Gray Body and Cover

PN-1322-CMB Style 2 Poly Carbonate / Light Gray Body and Clear Cover

PN-1322-DGMB Style 3 ABS / Dark Gray Body and Cover

Optional Internal Panel:

Part Number PNX-91421
