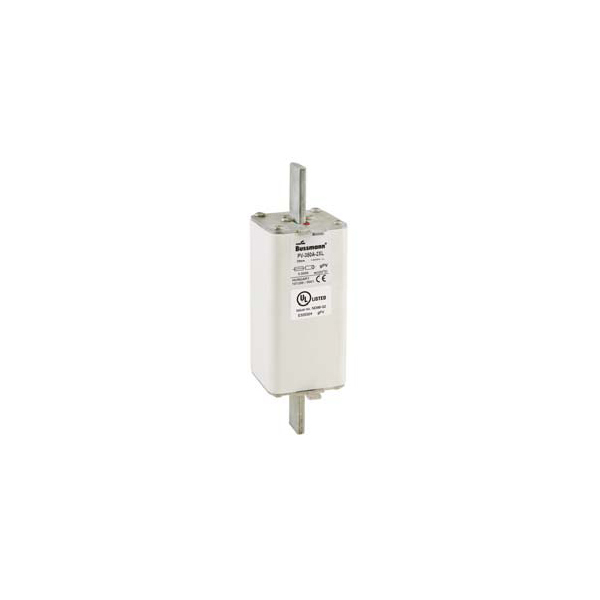

Bussmann PV-100A-01XL-15 - Fuse 100A 1500V Bladed size 01
MSRP: $1,214.00 Sale Price: $626.85 You Save $587.15 (48%) | USD Priced Each Order In Multiples of: 1 Order In Multiples of: 1 For Fastest Delivery, add $25 Bussmann Drop Shipping Fee Below. Contact us for more information. |
Save up to 60%. Contact us for Special Pricing combining product, quantity, shipping and terms. Email [email protected]
• Brand: Bussmann Eaton Cooper Fuses
• MPN: PV-100A-01XL-15
• Ship Weight: 0.01lbs
• GTIN: 051712371957
• Condition: New
• Availability: In Stock
• Seller: A-I Consolidated
• Keywords: PV-100A-01XL-15, Bussmann, Fuse 100A 1500V
• Category: Electronics > Circuit Boards & Components > Passive Circuit Components
Bussmann PV-100A-01XL-15 - Fuse 100A 1500V 1*Xl Pv, 051712371957, Carton Quantity: 1.
XL Photovoltaic fuse links
Eaton’s Bussmann® series XL fuse links are
specifically designed to protect and isolate
photovoltaic array combiners and disconnects.
These fuse links are capable of interrupting low
overcurrents associated with faulted PV systems
(reverse current, multi-array fault).
Fuse size
• 01XL, 1XL, 2XL and 3L
Technical data
Rated voltage: 1000, 1200, 1500 V d.c.
Rated current: 50 to 600 A
Standards/Approvals
• IEC 60269-6
• UL 248-19 (file number E335324)
• RoHS compliant
Microswitches
• For bladed fuse links
• 170H0235 or 170H0237 for 01XL
• 170H0236 or 170H0238 for 1XL, 2XL and 3L
• For bolted fuse links
• 170H0069 for all sizes
Fuse holders (ordered separately)
• SD1XL-S-PV (suitable for fuse body size 01 and 1XL)
• SD2XL-S-PV (suitable for fuse body size 2XL)
• SD3L-S-PV(suitable for fuse body size 3L)
Ordering Information:
1000 V d.c. Fuse body size
| Fuse type | 01 | 1 | 2 | 3 |
| Bladed | PV-(amp rating)-01XL | PV-(amp rating)-1XL | PV-(amp rating)2XL | PV-(amp rating)-3L |
| Bolted | PV-(amp rating)-01XL-B | PV-(amp rating)-1XL-B | PV-(amp rating)2XL-B | PV-(amp rating)-3L-B |
| - | - | - | PV-(amp rating)2XL-3B |
1500 V d.c. Fuse body size
| Fuse type | 01 | 1 | 2 | 3 |
| Bladed with top indicator | PV-(amp rating)-01XL-15 | PV-(amp rating)-1XL-15 | PV-(amp rating)-2XL-15 | PV-(amp rating)-3L-15 |
| Bladed without top indicator | - | - | - | PV- (amp rating)-3L-U-15 |
| Bolted with side indicator | PV-(amp rating)-01XL-B-15 | PV-(amp rating)-1XL-B-15 |
PV-(amp rating)-2XL-B-15 PV-(amp rating)-2XL-3B-151 |
PV-(amp rating)-3L-B-15 |
| Bolted without side indicator | - | - | - | PV- (amp rating)-3L-BU-15 |
