Atlas Sound TSD-DAC2I - 2 Channel Balance Line Input to Dante Interface

Write a Review

Ask a Question

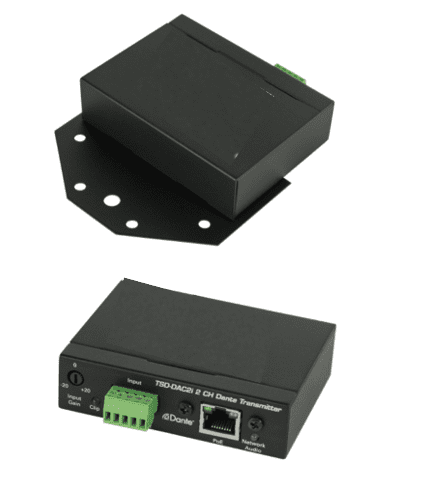

The AtlasIED TSD-DAC2i is a PoE 2-channel analog pre-amplifier that converts analog audio signals into Dante^® digital audio. The TSD-DAC2i can be used for any Analog to Dante^® digital audio end point but is ideally suited to be used with the AtlasIED WTSD wall mixer series. Once converted into Dante^® digital audio, the audio can be transmitted over IP networks and routed in the Dante^® Controller software. The TSD-DAC2i Dante^® transmitter I/O module features two analog balanced line inputs with a variable gain to operate from line to mic level. An Input Clip indicator illuminates when clipping signals are present. There are indicators for Power and Network connection. The TSD-DAC2i requires no external power supply, it is powered via a network PoE port or a PoE cable power injector.

• Dante^® digital audio platform

• 2 CH Balanced Analog Line Input

• Wide range gain adjust -20dB to +20dB

• AUX, Line & Mic Levels

• Input Clip Indicator

• PoE Powered

• Mounting Plate

• Incorporates with WTSD Wall Mixers
