Square D Schneider Electric - ZBE203 - Standard Double 2 NO Contact Block.
Write a Review
Ask a Question

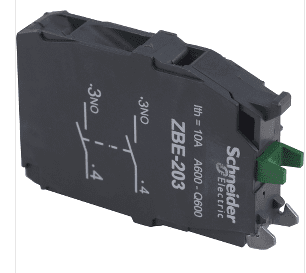

Square D Schneider Electric - ZBE203 - Standard Double 2 NO Contact Block.
Click To Enlarge
MSRP: $33.20
Sale Price: $21.00
You Save $12.20 (37%)
USD Priced Each
Call or Email For price Quote On Higher Quantities
Qty:

$49 Minimum Order.

220 Available


Save up to 60%. Contact us for Special Pricing combining product, quantity, shipping and terms. Email [email protected]

• Brand: Square D by Schneider Electric

• MPN: ZBE203

• Ship Weight: 0.02lbs

• Condition: New

• Availability: In Stock

• Seller: A-I Consolidated

• Category: Electronics > Electronics Accessories

Square D Schneider Electric - ZBE203 - Standard Double 2 NO Contact Block.



range of product
Harmony XB5
Harmony XB4
product or component type
Contact block
device short name
ZBE
sale per indivisible quantity
5
IP degree of protection
IP20 IEC 60529
contacts type and composition
2 NO
contact operation
Slow-break
contact block type
Double
contacts usage
Standard contacts
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Complementary
net weight
0.04 lb(US) (0.02 kg)
positive opening
Without
operating travel
0.10 in (2.6 mm) NO changing electrical state)
0.17 in (4.3 mm) total travel)
operating force
5 N NO changing electrical state
mechanical durability
10000000 cycles
tightening torque
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
contacts material
Silver alloy (Ag/Ni)
short-circuit protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current
10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage
600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage
6 kV EN 60947-1
[Ie] rated operational current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
electrical durability
1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability
Λ < 10exp(-7), 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8), 5 mA in clean environment EN/IEC 60947-5-4
mounting of block
Front mounting
condition of use
Mounting on push-button collar
electrical composition code
C2 3)
C4 2)
C6 2)
C8 1)
C10 2)
C13 3)
M2 2)
M4 2)
M8 2)
